Crash barriers are vital safety installations designed to prevent vehicles from veering off the road or colliding with hazardous objects. They serve as a critical component in road safety, reducing the severity of accidents and protecting both occupants and pedestrians. By absorbing and redirecting the impact energy, crash barriers help to mitigate the consequences of collisions, making roads safer for everyone.

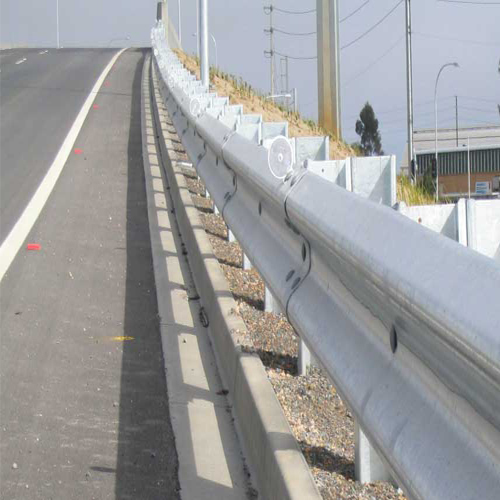

Among the various types of crash barriers, the W Beam crash barrier is one of the most common and effective. The W Beam crash barrier, named for its distinctive ‘W’ shape, is constructed from metal and is known for its durability and resistance to impact forces. These barriers work by deforming upon impact, which absorbs and dissipates energy, thereby reducing the force of the collision and guiding the vehicle back onto the road. The design of the W Beam barrier allows it to effectively handle a range of impact scenarios, making it a preferred choice for highways, roads, and other high-traffic areas.
Our wide selection of Class H1W3 compliant W Beam metal crash barrier products are manufactured using raw materials obtained from leading industry players such as TATA, SAIL, Hindustan Zinc, and others. All of our products are extensively tested and quality assured. As a leading W beam crash barrier manufacturer, we customise our products to meet and exceed client requirements while adhering to European, American, and Indian regulations (including Euro-standard product testing).
The designation ‘H1W3’ for crash barriers is part of a standardised classification system used to define the barrier’s performance and compliance with safety regulations.
H1: This part of the classification indicates the impact severity level that the barrier can withstand. ‘H1’ refers to a low severity impact level. Barriers classified as H1 are designed to handle impacts from vehicles at lower speeds and with lower energy levels, typically used in areas with lower traffic speeds and reduced risk of high-speed collisions.
W3: The ‘W’ in the classification stands for ‘W Beam,’ which is the type of barrier. The number ‘3’ indicates the performance level regarding the barrier’s ability to redirect and contain vehicles. The W3 designation denotes a high level of containment and redirection capability, ensuring that the barrier can effectively manage the impact forces and guide vehicles back onto the road without allowing them to penetrate or cross the barrier.
We have a variety of metal crash barriers, including Single Side Single Barrier, Double Side Single Barrier, Single Side Double Barrier, and Double Side Double Barrier configurations, in our portfolio, which highlights our position as the top W metal beam crash barrier manufacturer and supplier in India. We guarantee flawless production, short turnaround times, and excellent final goods with a blend of cutting-edge machinery, top-notch internal product testing facilities, and certified engineers.
Each Class H1W3 W beam crash barrier comes with galvanised zinc coating in accordance with MoRTH clause 810/IRC, and we keep ready stock on hand to ensure quick delivery. Significant logistical benefits are also provided by our industrial unit's close proximity to national highways, seaports, and rail lines.

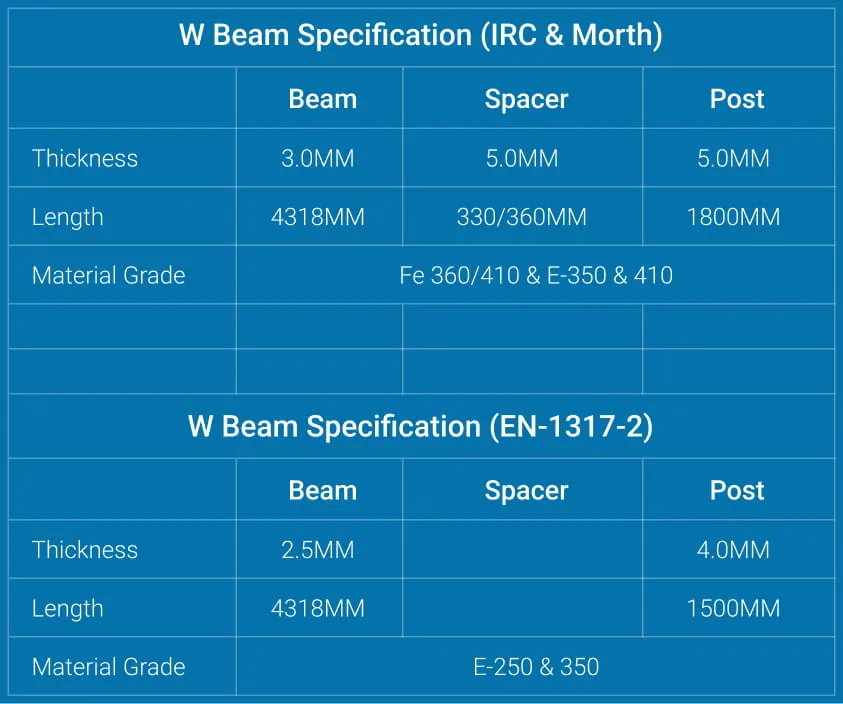

Product Specification
Explore the advanced technical specifications of our safety barriers, designed and crash-tested for optimal performance. As leading w beam crash barrier manufacturers, we ensure unparalleled durability and compliance with global standards.
-
Barrier Configurations:
- Single Side Single Barrier
- Single Side Double Barrier
- Double Side Single Barrier
- Double Side Double Barrier
- Indian Design: Crash Tested Under EN 1317-2 at Natrax (2 Mtr Centre to Centre)
- International Design: Licensed under EN 1317-2 (2.0 & 2.66 Mtr Centre to Centre)
-
Safety Standards:
- On-ground safety barrier, conforming to Class H2W3, H2W4, H2W5
- Certified in accordance with European Standard EN 1317: Part 2
- Adherent to IRC 119 – 2015, SP 73:2007, SP 73:2015, SP 84:2014, SP 87:2019 recommendations
-
Materials:
- 3.0mm/5.0mm thick HR Coil
- Fe360, Fe410, and Fe510 raw material grades
- Raw materials conform to IS 5986/2062/10748 or equivalent standards
-
Dimensions:
- 3.0*4318mm (underneath width) Beam dimensions
- 150755mm (underneath width) Post and Spacer dimensions
- 502mm width for optimal coverage and protection
- Crash Testing: Crash tested for: Bus of 13000 kgs and Car of 900 kgs
- Complete Range of W Beam Crash Barrier Products: Our product lineup includes a comprehensive range of W beam crash barriers, meticulously engineered to meet various W beam crash barrier specifications, ensuring safety across diverse applications.
- Premium-Grade Raw Materials, Sourced from Leading Players: We use premium-grade raw materials from trusted suppliers, guaranteeing that our W crash barrier products offer unmatched reliability, strength, and long-lasting performance under all conditions.
- Enhanced Durability and Superior Structural Strength: Our W beam crash barriers are built to withstand extreme impacts, thanks to their enhanced durability and superior structural strength, ensuring maximum safety and longevity.
- Compliance with the Latest International Standards: Our W-type metal beam crash barriers comply with the latest international safety standards, ensuring they meet stringent requirements for quality, performance, and safety across all installations.
- Provides Safety Against Vehicular Impact: Designed to absorb and redirect energy during collisions, our W beam crash barriers offer vital protection, minimising the risk of severe damage and ensuring road safety.
Manufactured in adherence to global manufacturing and quality standards, our high-precision W metal beam crash barriers offer a wide range of competitive advantages.
- Engineered Excellence for Best Quality: Our W beam crash barriers are crafted with advanced engineering techniques, ensuring they meet exact crash barrier specifications for durability and optimal performance.
- Premium Raw Materials for Durability: Made from high-grade raw materials, our crash barriers ensure superior structural strength and longevity, providing robust protection and reliability in all environments.
- Designed for Optimal Safety and Protection: Engineered to exceed safety standards, our W metal beam crash barriers offer exceptional impact absorption and vehicle containment, enhancing safety on both highways and local roads.
- Versatile for Urban and Rural Projects: Our barriers are adaptable to various infrastructure projects, making them ideal for urban settings and rural roads, delivering consistent performance across diverse applications.From the Indian Railways cattle fencing project and the India Garland road development project, to the Bundelkhand Expressway and Purvanchal Expressway projects, our W metal beam crash barriers have been used in several prestigious works across the length and breadth of the country.
